BarScreenSensor - Ultrasound analyser

The product features at a glance:

• The precise ultrasonic measurement technology is the perfect fit to test precious metal ingots

• Usable for bars with atleast 50/100 g (depending on the geometry)

• Quick detection of foreign metal inclusions

• Complete penetration of the measured object with a thicknes of up to 10 cm

• Prevents big financial losses and brings safety and trust to purchase and sell of precious metals

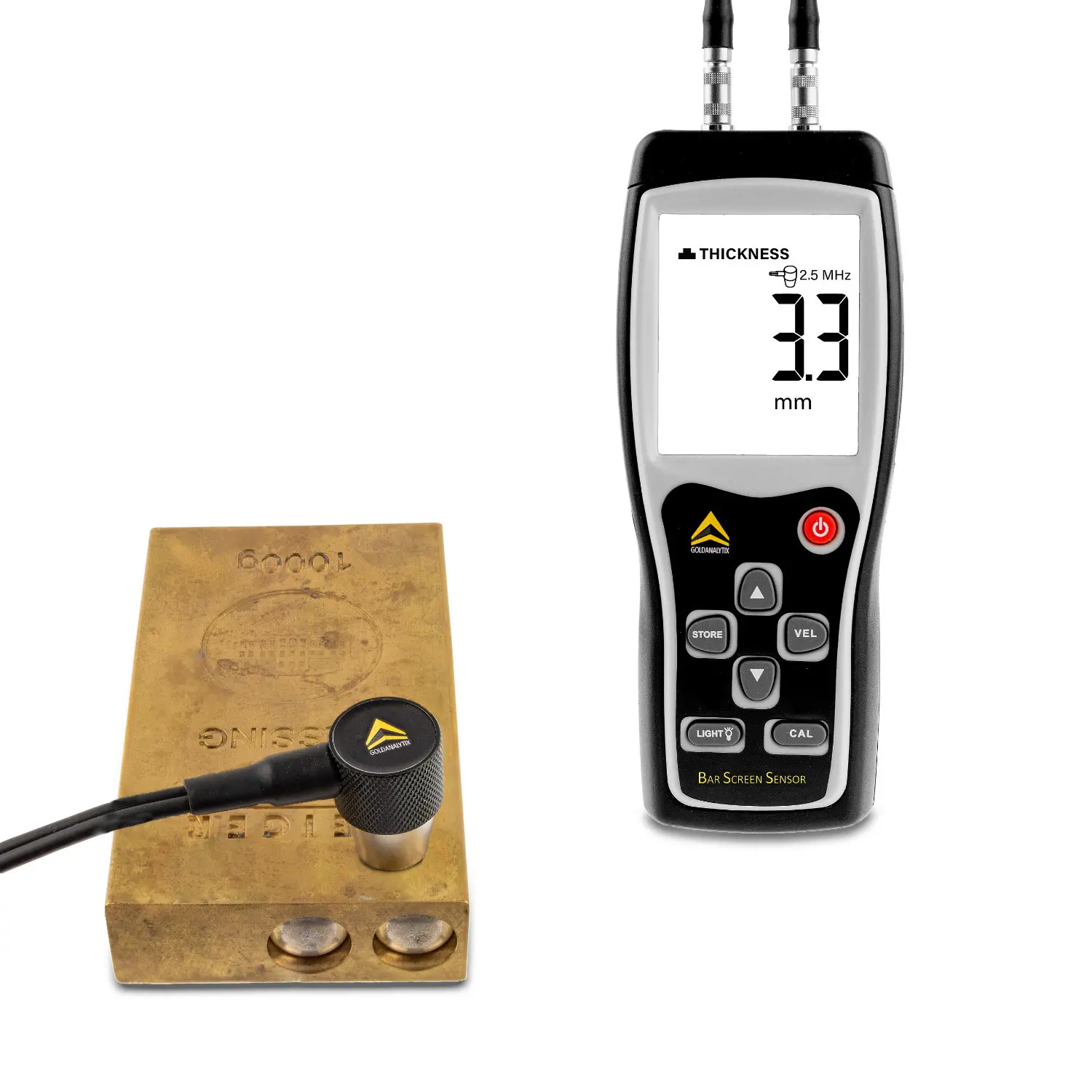

The BarScreenSensor is one of the most important measuring instruments for testing the authenticity of gold bars (and other precious metal bars). The ultrasonic measurement allows complete penetration of all common ingot sizes of more than one ounce and detects inclusions of foreign metals at differing sound speeds.

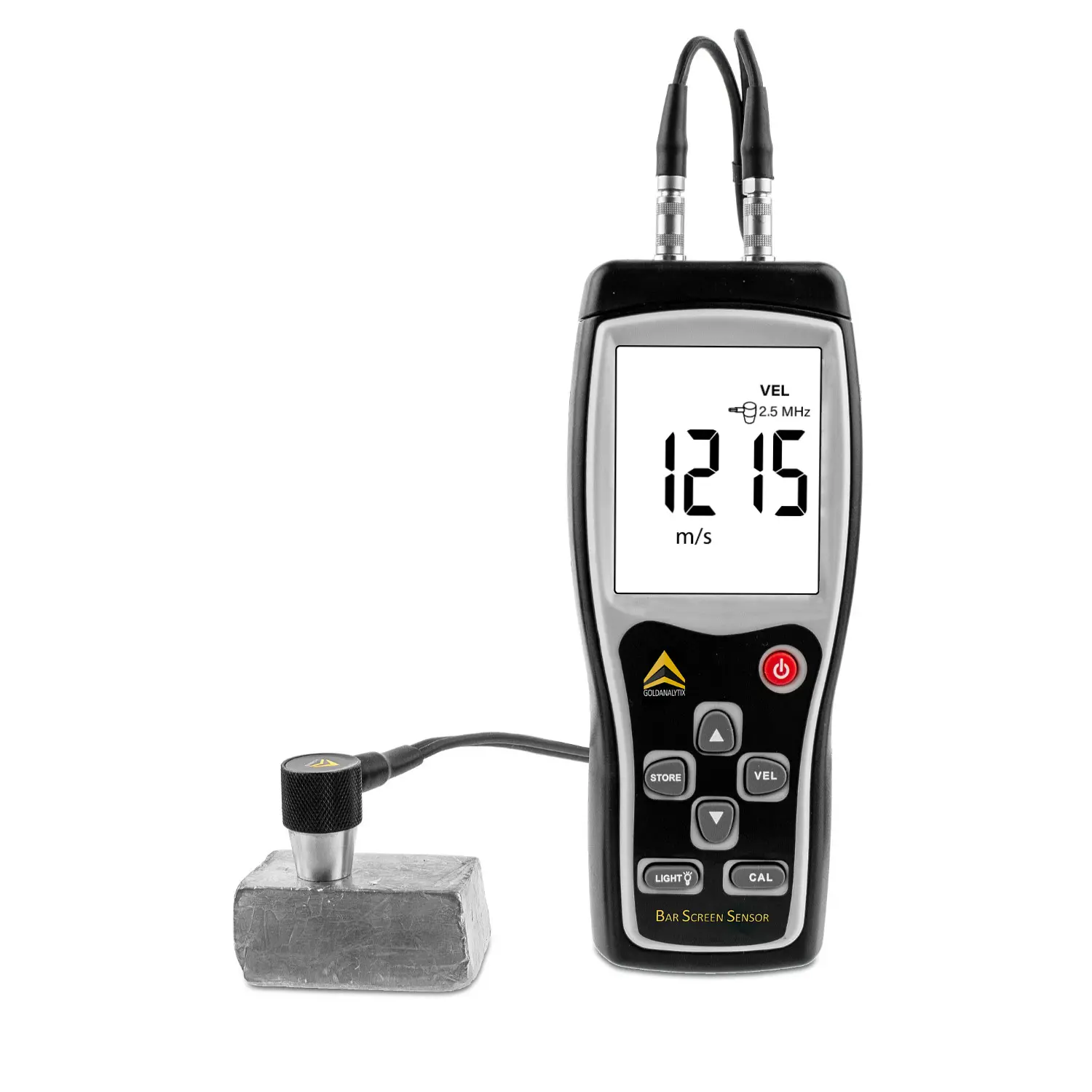

When buying ingots, the BarScreenSensor can prevent large losses in value. Checking their own stock gives users security and credibility towards potential customers. Thus, precious metal dealers, banks and collectors can benefit from the BarScreenSensor both when buying and selling. Within a short time, you have tested a gold bar with the BarScreenSensor - entirely without test acids, completely non-destructive.The BarScreenSensor is excellently suited for silver bars. Even difficult to detect lead-tin forgeries with the same density as silver, which would be inconspicuous in a classic density test, are reliably detected by the ultrasonic device from Goldanalytix. The high weight and thickness of the heavy silver bars do not pose a challenge for the BarScreenSensor.

In the manual, the measurement procedure is described in detail. Clear pictures and a table of reference values make the application easy even for beginners. In addition, you can always find the latest version of the manual on the Internet.

In combination with the density scales from Goldanalytix in the "Bar testing kit GAX 1000", even more types of counterfeits in circulation all over the world can be detected. The digital sliding caliper from Goldanalytix is an important addition to the BarScreenSensor due to its high accuracy, so that the thickness of the test object can be measured exactly and then used as a reference value for the ultrasound measurement.

In combination with the density scales from Goldanalytix in the "Bar testing kit GAX 1000", even more types of counterfeits in circulation all over the world can be detected. The digital sliding caliper from Goldanalytix is an important addition to the BarScreenSensor due to its high accuracy, so that the thickness of the test object can be measured exactly and then used as a reference value for the ultrasound measurement.

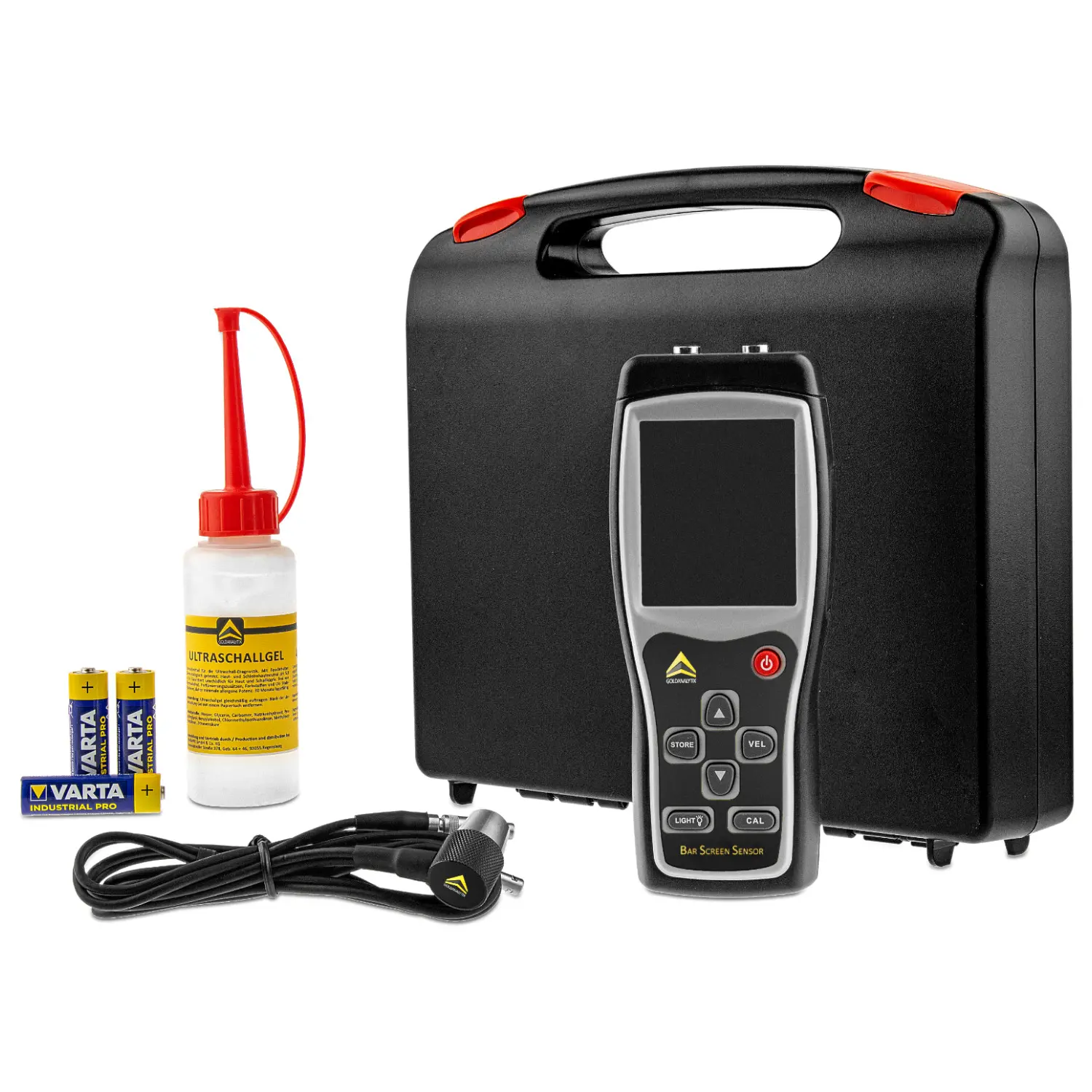

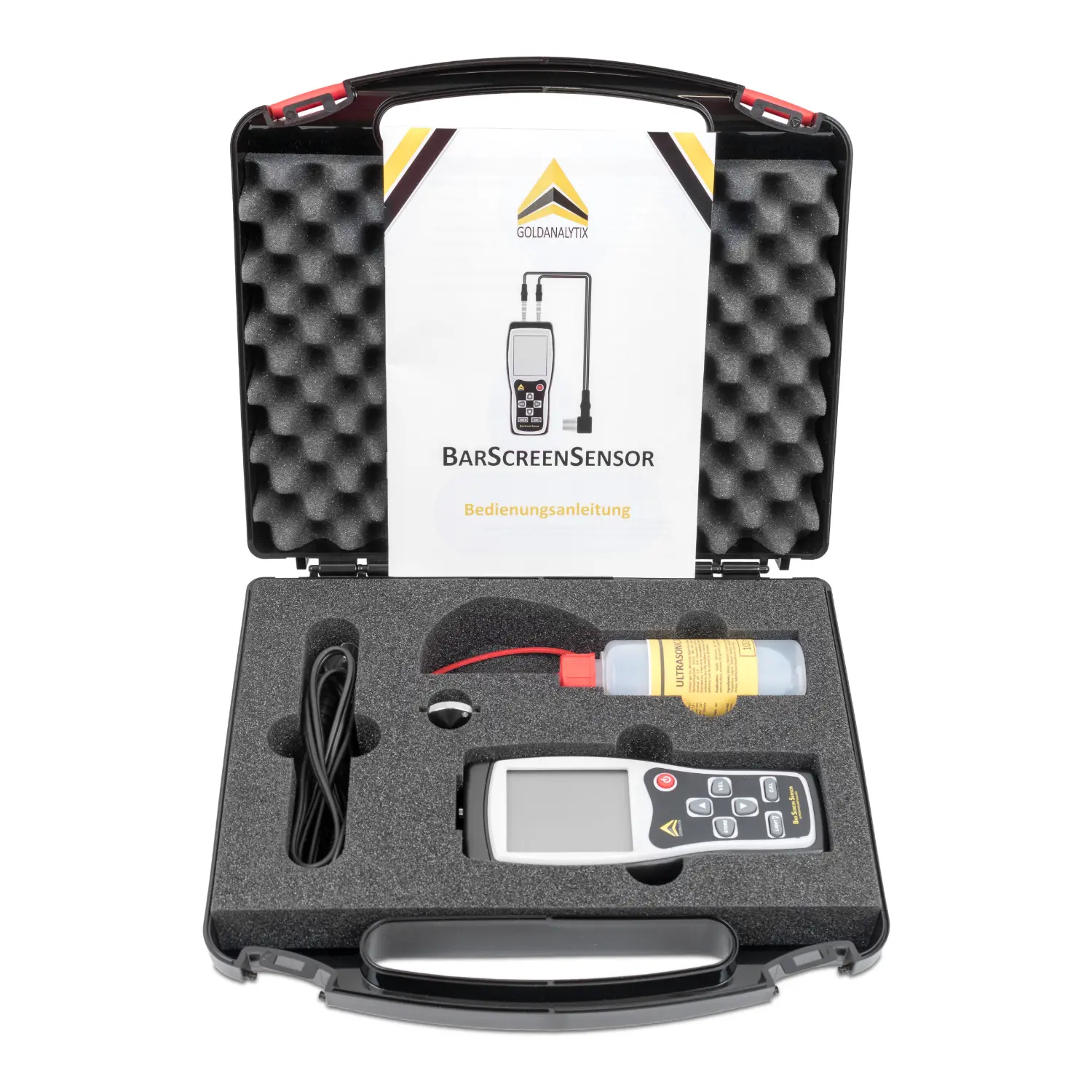

Scope of delivery:

• Ultrasound Scanner

• Measuring head

• Contact gel

• Calibration plate

• Instruction manual

• 3x AAA batteries

• Handy padded case
